SMART SYSTEMS

RCS3

3 contact inputs and 3 dry contact outputs

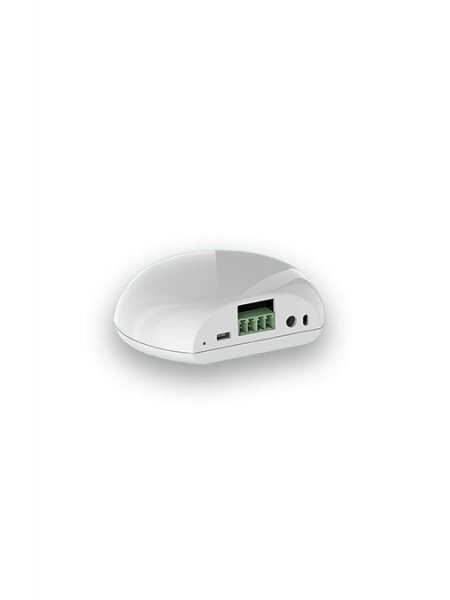

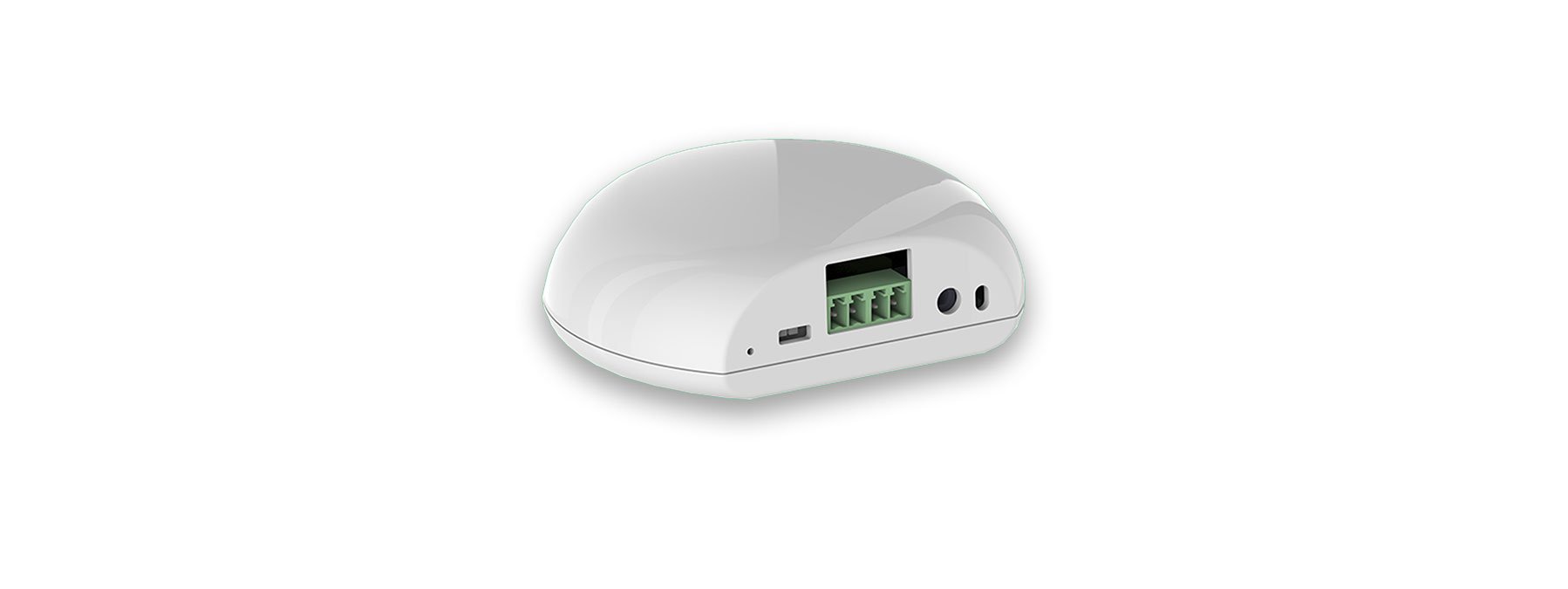

Relay & Contact Sensor

The Axxess RCS3 is designed for low voltage control functions.  It comprises 3 contact inputs, 3 dry contact outputs.
And the RCS3 sports a temperature sensor for more distributed temperature sensing.

Click for Installation Guide



SPECS

Dimensions
Width: 3.1″ (7.87cm)
Length: 2.66″ (5.33cm)
Height: 1.0″ (2.54cm)

Colors
White/ Black

Approvals
FCC Part 15
IC
CE

Wireless
ZigBee PRO (802.15.4)
Control4 driver downloadable



Power & Battery
A DC power adapter is included with either a North American, European, UK or Australia/China plug. Auxiliary power is 6.5V-24V AC or DC

Optional POE
Alternative power option to power the device using the external RJ45 jack.

Repeater Function
Join up to 16 more devices and/or extend the range of your ZigBee network.



Relay Function
3 relay outputs using internal RJ45 jack
DC Load Max: 1A | 60VDC
AC Load Max: 1A | 40VAC

Contact Sensor
3 contact sensor inputs using RJ12 jack.

Temperature
Accurate to +/- 1°C
Operating range of -40°C to 70°C



Power Over Ethernet

Our POE version offers an alternative power option to power the device using the external RJ45 jack instead of the DC power adapter. This device does not have Ethernet connective capability; it simply offers an alternative power option.

Sleek, Modern Design

With clean lines, minimalist design, and compact size, the Wireless Motion Sensor is a solution that fits your modern decor.
